Technical Details

TowFLEXX TF3

TF3

Towing performance
Up to 9,000kg
Lifting capacity
Up to 1,500kg
Airframe
Airplanes & Helicopter
Handling
remote controlled
360° turntable
yes
Wheel Adjustment
Fixed Size of Recording
Ergonomic Tiller Control
not necessary
Battery Life
ca. 5km / 3,8mi
12V Socket
optional
Light
front and rear
Time to record
3 – 5 seconds
GPU
24V
Weight
771lbs
Size
1,200 x 1,600 x 450mm
47.24″ x 62.99″ x 17.71″

Remote Controlled Efficiency

The TF3 is the smallest remote controlled aircraft tug of TowFLEXX. Within a few seconds the aircraft is picked up and can then be effortlessly manoeuvred to the desired location by remote control. The nose wheel is mounted on a specially designed turntable, which allows the operator to turn the tug 360° around the nose gear without twisting it.

Unique 360° Technology

The turntable of the TF3 prevents the nose wheel from turning when manoeuvring. At the same time, this allows unprecedented flexibility: the aircraft tug can rotate 360° around the nose wheel, enabling manoeuvres that are not possible with conventional towing equipment.

Furthermore, this tug can be used to pull or push aircraft into the corners of the hangar. In this way, the available space can be used much more efficiently and revenues can also be increased, as more aircraft can be accommodated in the same space.

It only takes one Person

The radio remote control of the TF3 has a high range so that the user can move freely around the aircraft. This means that no further persons are needed to manoeuvre the aircraft safely. A safety frequency is used.

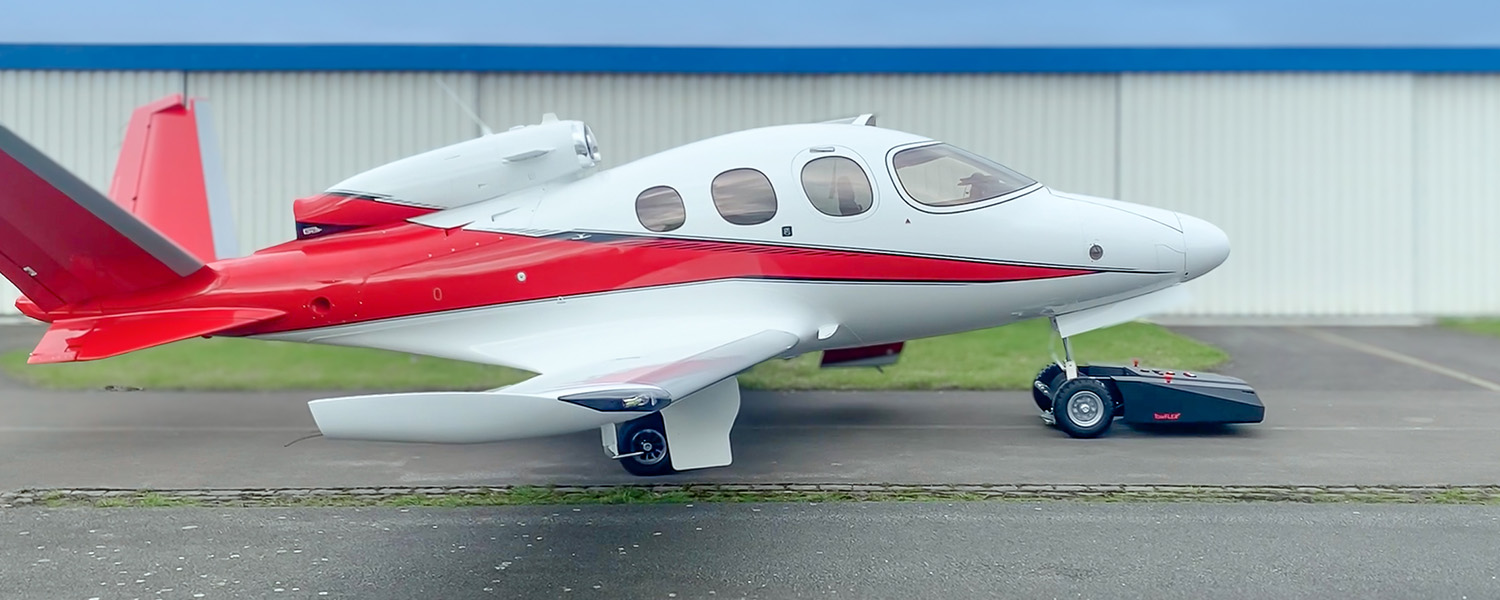

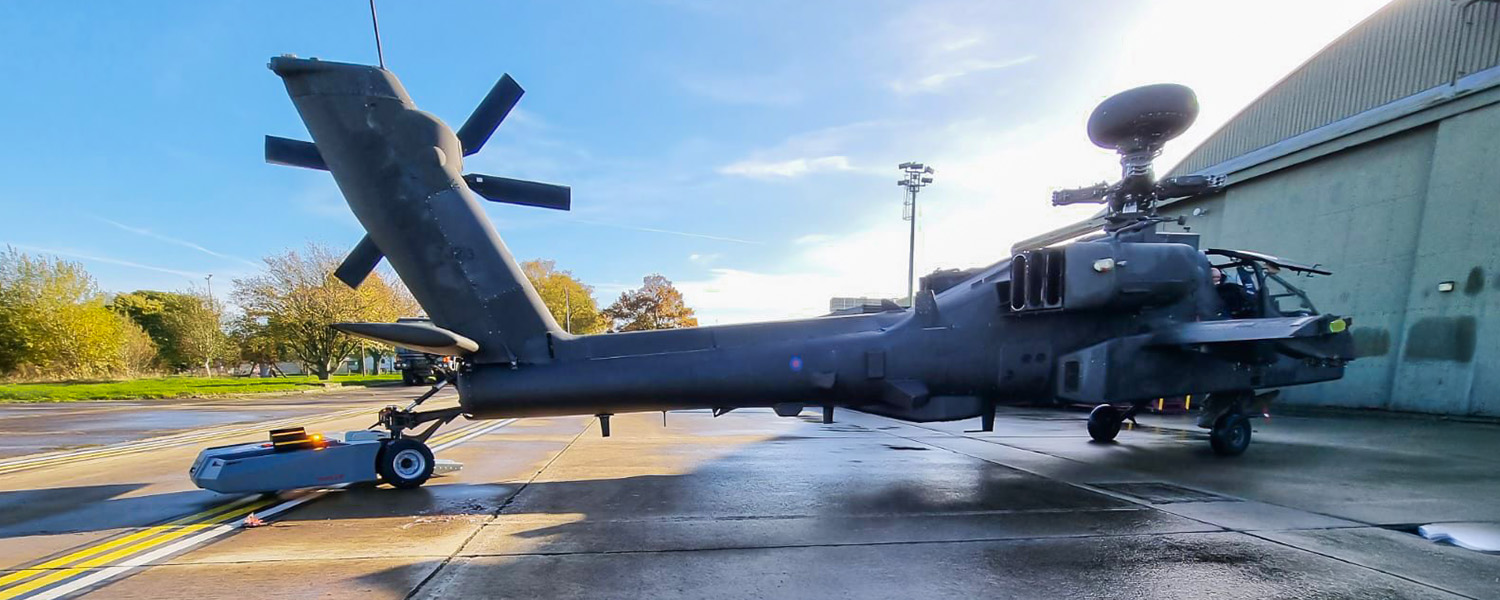

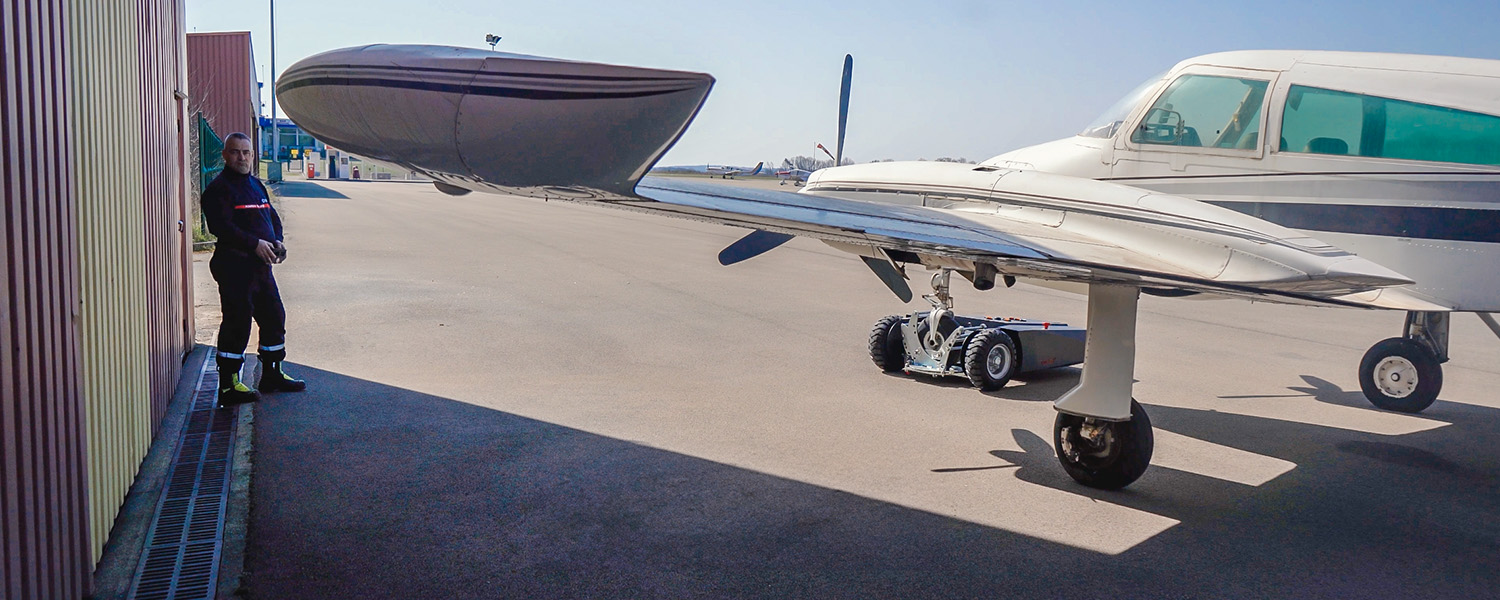

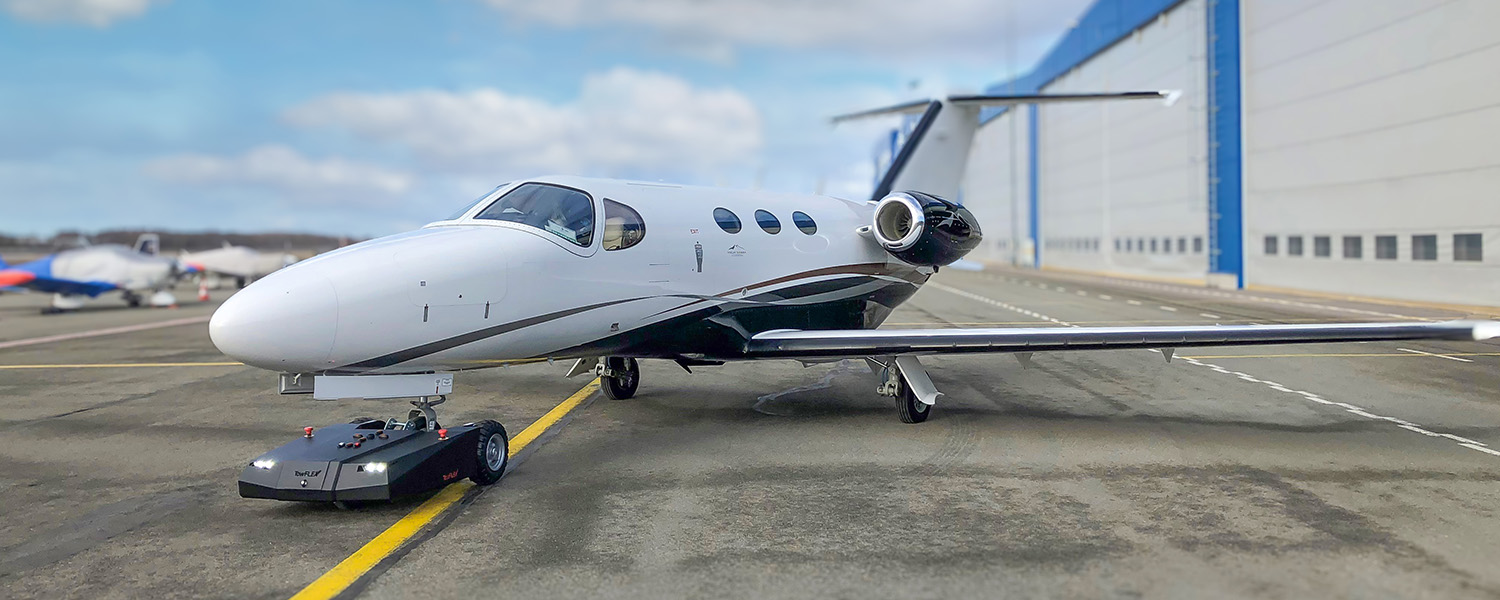

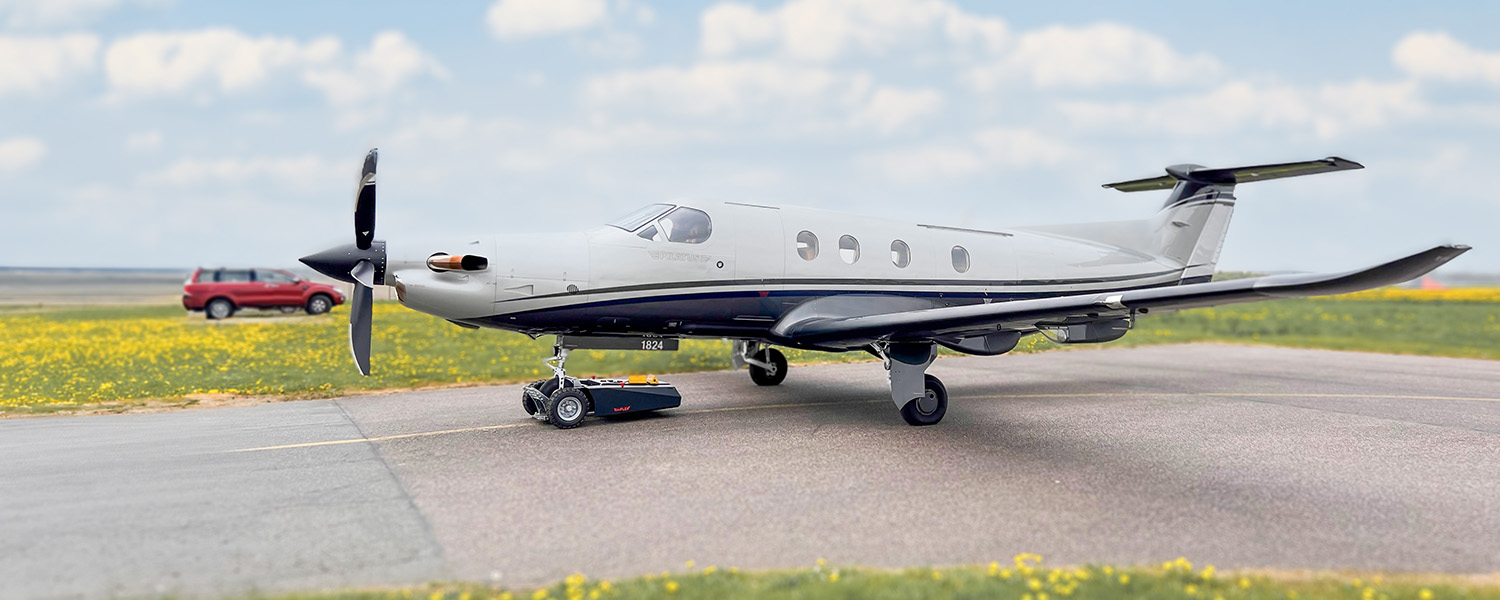

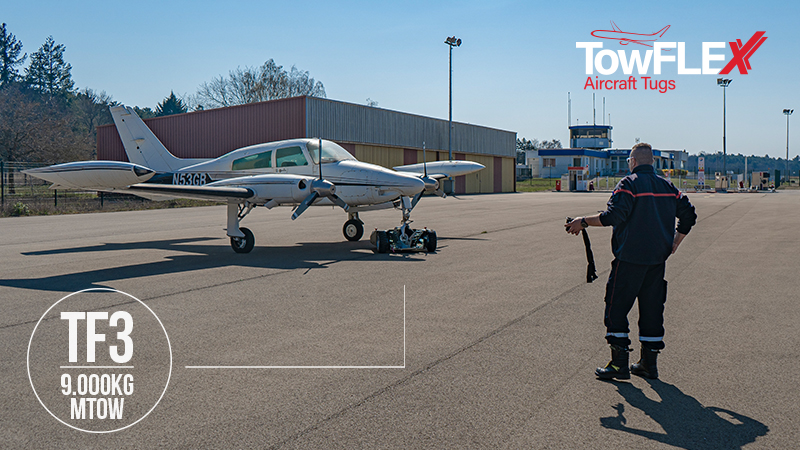

The TF3 at work

1
2
3
4
5
6
7

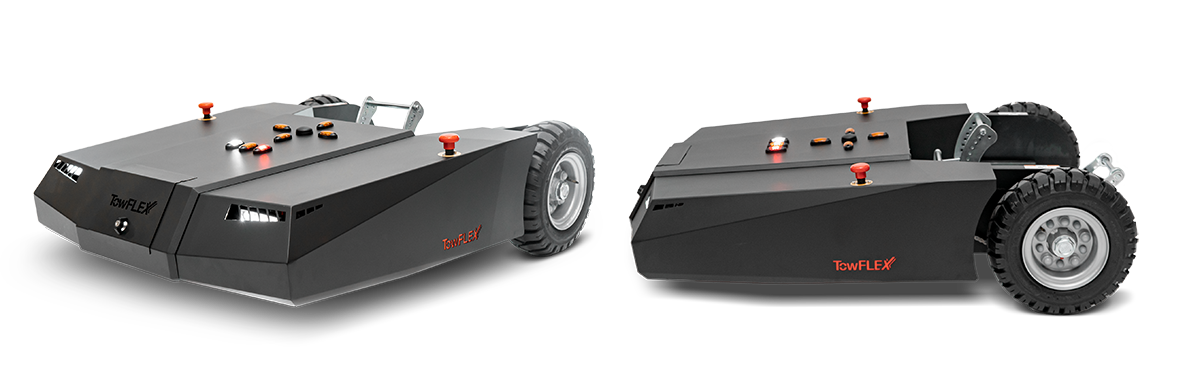

1

360° Turntable – different Mounts available

2

Batterietrennschalter auf beiden Seiten

3

Position indicators and status LEDs

4

high traction pneumatic tires

5

Headlights on both Sides

6

Turntable Lighting

7

Integrated charger
