TowFLEXX TF2.2
Towing Equipment for Robinson R22 & R44
Specifications
TF2.2 | |
|---|---|
|
Capacity |
up to 4.000kg / 8.800lbs |
|
Airframe |
Robinson Helicopter |
|
Controls |
manually |
|
Wheel Adjustment |
– |
|
Battery Life |
ca. 3km / 1,8mi |
|
Lights |
front |
|
Time to pick up |
5-10 Sec. |
|
GPU |
24V |
|
Weight |
70kg / 154lbs |
|
Dimensions |
520 x 1.700 x 700mm |
Saving energy for the essentials
The TF2.2 is specially designed to provide valuable assistance to users of Robinson helicopters. The TF1 and TF2 models, which had already been successfully established on the market for many years, were of course a great influence. Following a similar principle, the TF2.2 is manoeuvred under the fuselage of the helicopter and attached to the adapter point with a quick release catch. This process only takes a few seconds!
The 500W motor of the tug makes the further transport of the helicopter a breeze and saves energy for the essentials and prevents the user from getting sweaty and out of breath when starting the flight!
TF2.2 in Action
1
2
3
4
5
6
7
8
1

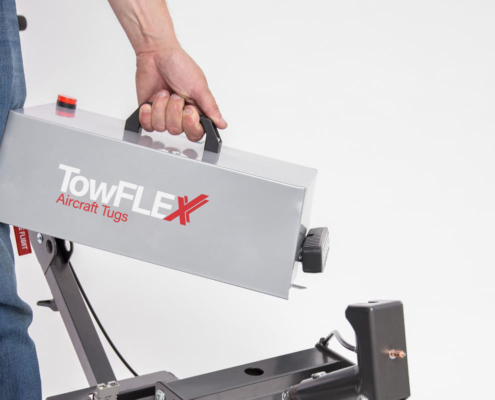

33Ah battery carrying box
allows charging at a different location
2
Bowden cable to lock and unlock the mount
3
Speed Control
4
free rotating castor
5
Mount for Robinson Helicopters
6
Transmission with differential
7
Status Light
8
LED Headlight
For the TF1 as well as for the TF2, it is possible to replace the basic handle with an ergonomic tiller head control. Its design enables a more comfortable and ergonomic fit in the hand. With the tiller thumb control speed paddles the speed transition is smooth and effortless , the operator will have total confidence whilst maneuvring the aircraft. The tiller head control also has an emergency stop switch on the front side, which immediately stops the unit in a dangerous situation, and a built-in horn.
- ergonomic handle for better comfort
- comfortable stepless speed control via paddle switches
- Emergency Stop
- integrated horn
