Utilize all of your Hangar Space

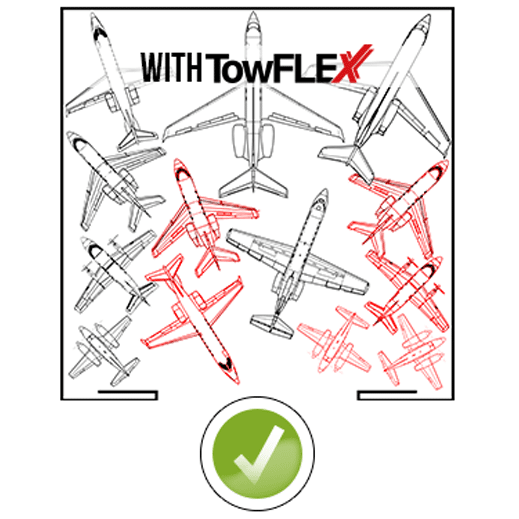

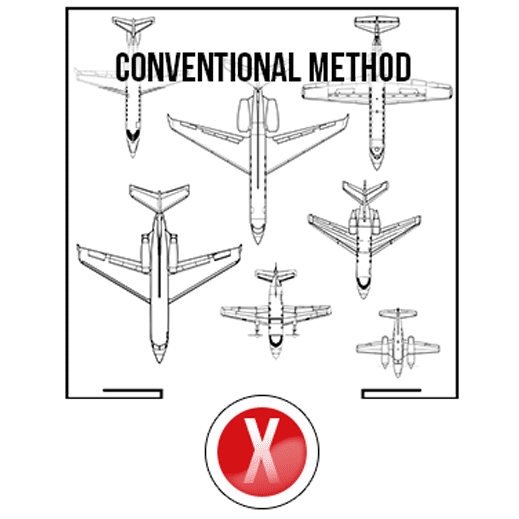

Up to 40% more Hangar Space with TowFLEXX Aircraft Tugs
TF1 |
TF2 |
TF2.2 |
TF3 |
TF4 |
TF5 / TF5 Essential |
TF6 | |
|---|---|---|---|---|---|---|---|
|
Towing Capacity |
up to 4,400lbs / 4.400lbs |
up to 4.000kg / 8.800lbs |
up to 4.000kg / 8.800lbs |
up to 9.000kg / 20,000lbs |
up to 14.000kg / 30.000lbs |
up to 60.000kg / 132.000lbs |
up to 90.000kg / 198.000lbs |
|
Lifting Capacity |
– |
– |
Robinson Helicopter |
up to 1.500kg / 3.300lbs |
up to 1.500kg / 3.300lbs |
up to 5.000kg / 11.000lbs |
up to 14.000kg / 30.000lbs |
|
Controls |
manually |
manually |
manually |
remote controlled |
remote controlled |
remote controlled |
remote controlled |
|
360° Axis |
– |
– |
– |
yes |
yes |
yes |
– |
|
Wheel Adjustment |
manually |
manually |
manually |
mechanical |
semi-automatic |
mechanical |
automatic |
|
Airframe |
Aircraft |
Aircraft |
Robinson Helicopter |
Aircraft and Helicopter |
Aircraft and Helicopter |
Aircraft and Helicopter |
Aircraft and Helicopter |
|
Battery runti,e (under full load) |
ca. 3km / 1,8mi |
ca. 3km / 1,8mi |
ca. 3km / 1,8mi |
ca. 5km / 3,8mi |
ca. 8km / 5mi |
ca. 8km / 5mi |
ca. 3km / 1,8mi |
|
Lights |
front |
front |
front |
front and rear |
front and rear |
front and rear |
front and rear |
|
Time to release an Aircraft |
5-10 Sec. |
5-10 Sec. |
5-10 Sec. |
10 Seconds |
12 Sec. |
20 Seconds |
30 Seconds |
|
GPU |
24V (optional) |
24V (optional) |
24V (optional) |
24V (optional) |
24V (optional) |
24V (optional) |
24V (optional) |
|
Weight |
132lbs |
70kg / 154lbs |
70kg / 154lbs |
771lbs |
600kg |
1.900kg / 4.189lbs |
2.000kg / 4409lbs |
|
Dimensions |
520 x 1.700 x 700mm |
520 x 1.700 x 700mm |
520 x 1.700 x 700mm |
1.200 x 1.600 x 450mm |
1.500 x 1.800 x 510mm |
1.900 x 2.600 x 500mm |
2862 x 2230 x 780 mm |
All listed TowFLEXX Aircraft Tugs are available in individual configurations. To check if your aircraft or helicopter can be towed with our products, please send us a message!
